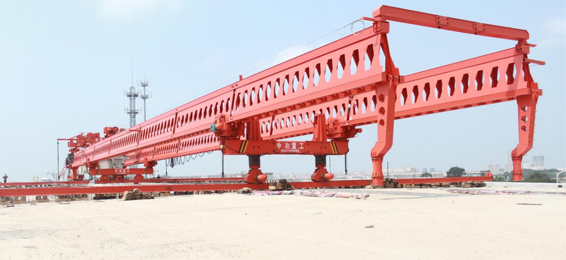

The Beam Launcher is a state-of-the-art piece of equipment specifically engineered for the seamless and safe placement of beams in bridge construction and other major infrastructure projects. It is a specialized piece of construction equipment used primarily in bridge construction projects. It is designed to lift, transport, and position precast concrete or steel bridge beams into place. This technology is crucial for efficiently assembling bridge structures, reducing construction time, and ensuring safety during the installation process.
|
Item |
30-100 |
30-120 |
40-160 |
50-200 |
50-300 |
|
Capacity(T) |
100 |
120 |
160 |
200 |
300 |
|
Span(m) |
30 |
30 |
40 |
50 |
50 |
|
Lifting Speed(m/min) |
0.79 |
0.79 |
0.7 |
0.9 |
0.7 |
|
Transverse Operating (m/min) |
1.5 |
1.5 |
2.25 |
1.5 |
1.5 |
|
Longitudinal Operating (m/min) |
3 |
3 |
4.25 |
2 |
2 |
|
Trolley Transverse Operating (m/min) |
1.5 |
1.5 |
2.25 |
1.5 |
1.5 |
|
Trolley Longitudinal Operating (m/min) |
3 |
3 |
4.25 |
2 |
2 |
|
Adaptive Longitudinal Lean |
0.05 |
||||
|
Applied Angle |
45° |
||||
|
Adaptive Cross Lean |
0.025 |
||||
|
Total Power (kW) |
65 |
65 |
75 |
110 |
150 |
01 Precision Engineering: The Beam Launcher is equipped with cutting-edge technology that allows for precise positioning of beams, minimizing errors and reducing the need for manual adjustments;
02 Enhanced Safety: With built-in safety features and remote operation capabilities, the Beam Launcher significantly reduces the risk of accidents on-site, ensuring a safer working environment for all crew members;
03 Increased Efficiency: Capable of handling heavy loads with ease, the Beam Launcher accelerates the beam placement process, leading to shorter project timelines and reduced labor costs;
04 Versatility: Designed to adapt to various types and sizes of beams, the Beam Launcher is versatile enough to be used in a wide range of construction projects, from bridges to high-rise buildings;
05 Eco-friendly Operations: By optimizing the beam installation process, the Beam Launcher contributes to reducing the overall environmental footprint of construction projects through decreased fuel consumption and minimized material waste.
01 Bridge Construction: Ensures the precise placement of large beams, essential for the structural integrity of bridges;
02 High-rise Buildings: Facilitates the installation of beams at great heights, enhancing the speed and safety of construction;
03 Industrial Projects: Ideal for large-scale industrial constructions requiring robust beam placement.
