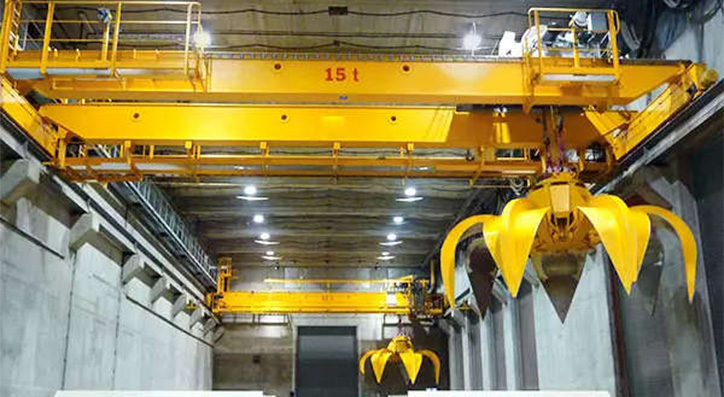

Double Girder Grab Bucket Overhead Crane

Send Message Inquiry Now

Product Description

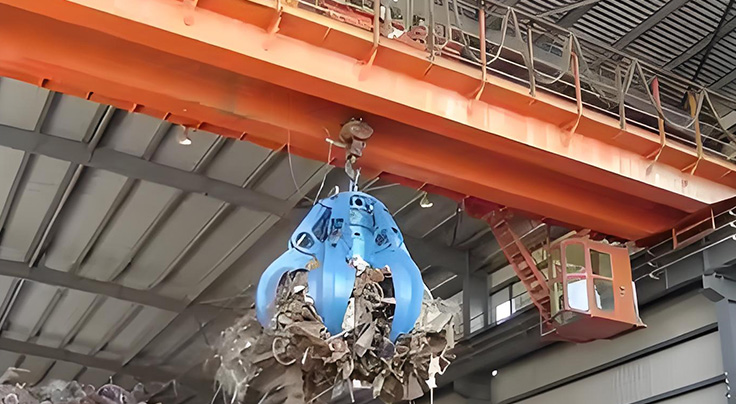

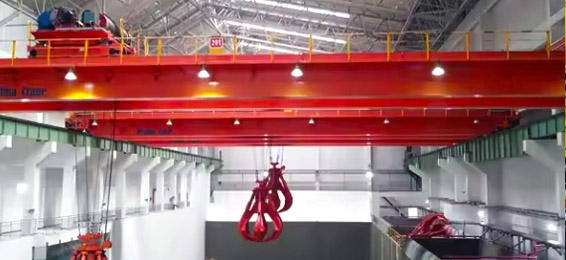

Grab bucket overhead crane is equipped with grab and lifting mechanism, which is specially used for loading and unloading various powdery and granular bulk materials. It is mainly composed of main beam, running mechanism, trolley, grab and electrical equipment, etc., and is widely used in power stations, warehouses, steel mill smelting workshops, ports, cement plants, waste recycling stations, etc. to load and unload scattered objects. Grab bucket overhead crane helps to increase factory output and ensure safe operation. In addition, the equipment can be customized to meet your specific work location and work requirements. We can also provide dust covers, tip seals according to environmental requirements, marine environment and other special working conditions.

Technical Parameters

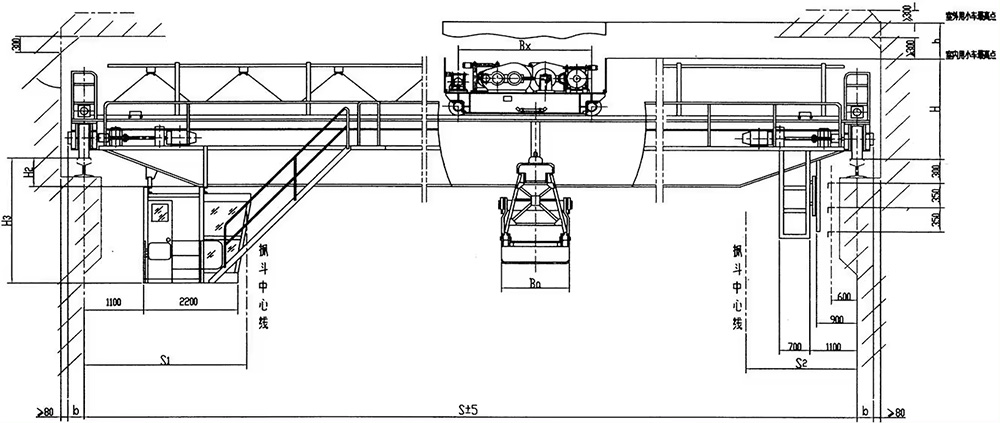

Double-Beam-Cabin-Control-Grab-and-Magnet-EOT-10

Item	Unit	Result
Lifting capacity	Ton	5-25 Ton
Lifting Height	H(m)	10-26 m
Span	m	10.5-31.5 m
Hoisting Speed	m/min	40.1-48.6
Trolley speed	m/min	87.3-113
Working Grade	/	A6
Working Environment temperature	℃	-65
Power Source	/	3 phase 380V 50HZ or customized
Control model	/	Cabin control/ Remote control

Characteristics

Reasonable structure, strong bearing capacity

Low noise, soft starting and stopping

Safe and reliable operation

Commodious cabin and open view

Low cost maintenance, long working life

Strong box type, welding by machine hand

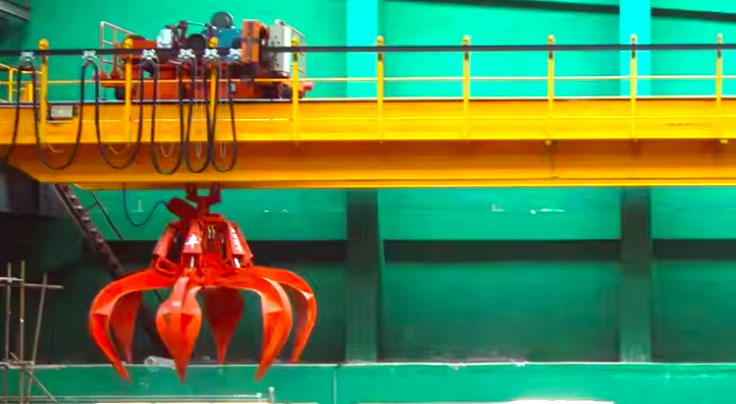

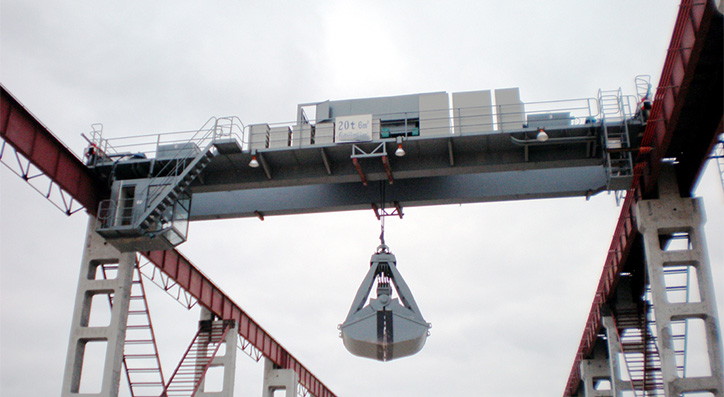

Type: QZ Grab bucket double girder overhead crane

Lifting capacity: 10ton

Span: 31.5m

Lifting height: 18m

Lifting speed: 29m/min

Traveling speed: 89m/min (for the main crane), 45.6 m/min (for the trolley)

Work Duty: A6

Operating mode: Cabin control

Advantages

01 Reasonable structure, strong bearing capacity
02 Low noise, soft starting and stopping.
03 Safe and reliable operation
04 Commodious cabin and open view
05 Low cost maintenance, long working life
06 Strong box type, welding by machine hand

Application

01 Ports and Harbors: Loading and unloading bulk materials from ships.
02 Mining and Mineral Processing: Handling ore, coal, and other minerals
03 Agricultural Sector: Transporting grain and other bulk agricultural products

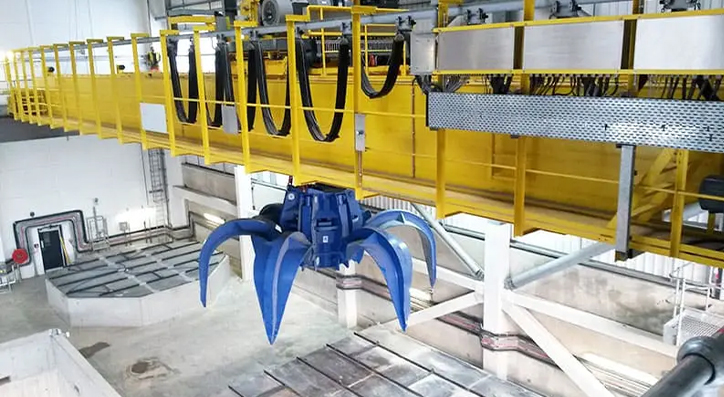

04 Waste Management: Handling waste materials in recycling plants.
