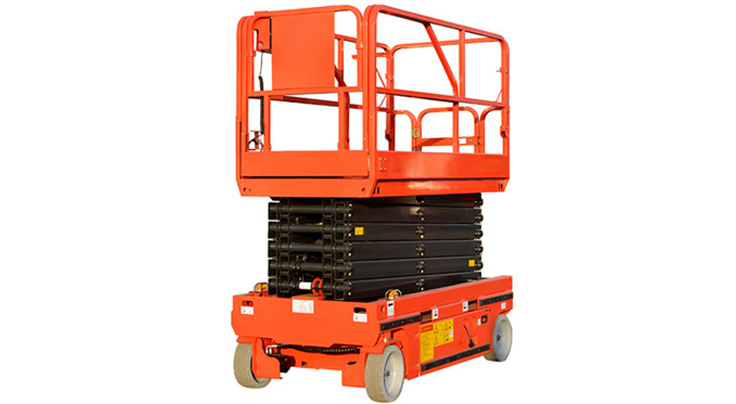

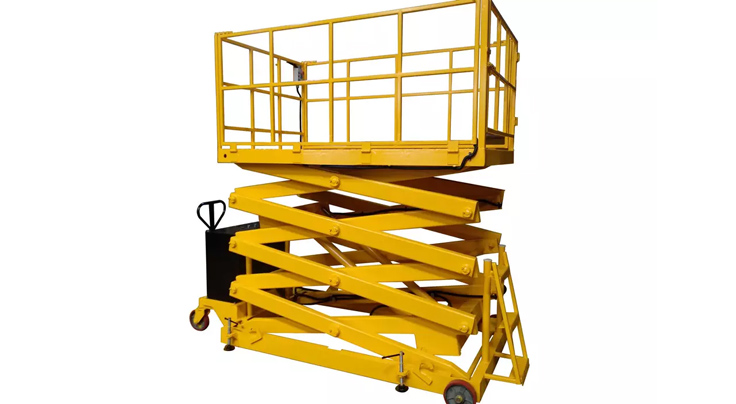

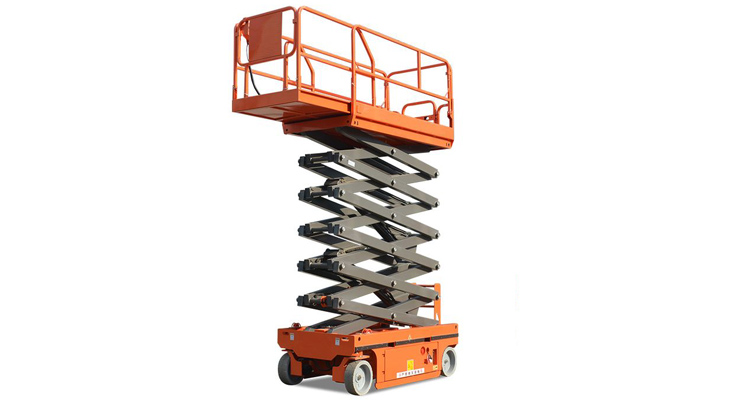

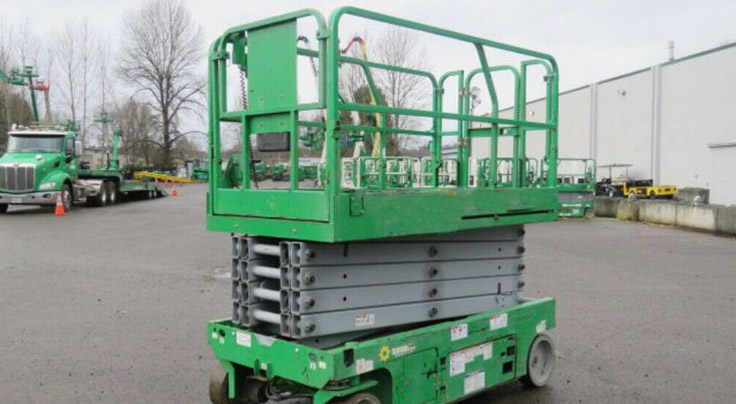

Electric Scissor Lift Platform
Electric Scissor Lift Platform
Electric Scissor Lift Platform
Electric Scissor Lift Platform

Product Description

An electric scissor lift platform is a versatile and essential piece of equipment widely used in various industries for safely lifting personnel and materials to elevated work areas. These platforms are known for their stability, ease of use, and ability to reach significant heights while providing a large, stable work area. You can select the right scissor lift platform to meet your specific needs and enhance productivity in your workplace.

Technical Parameters

scissor lift platform scissor lift platform

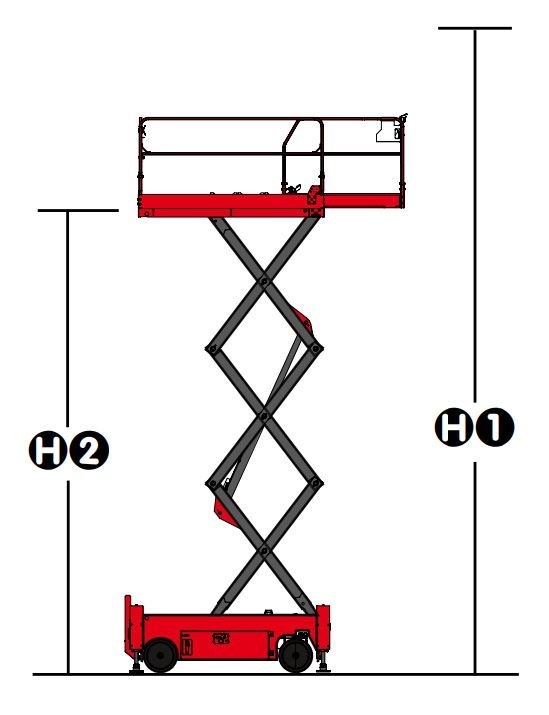

Working height max H1

8 m

10 m

12 m

14 m

16 m

Platform height max H2

6 m

8 m

10 m

12 m

14 m

Platform extension size

1 m

Lifting capacity

550 kg

450 kg

400 kg

350 kg

230 kg

Lifting capacity on the extension

120 kg

100 kg

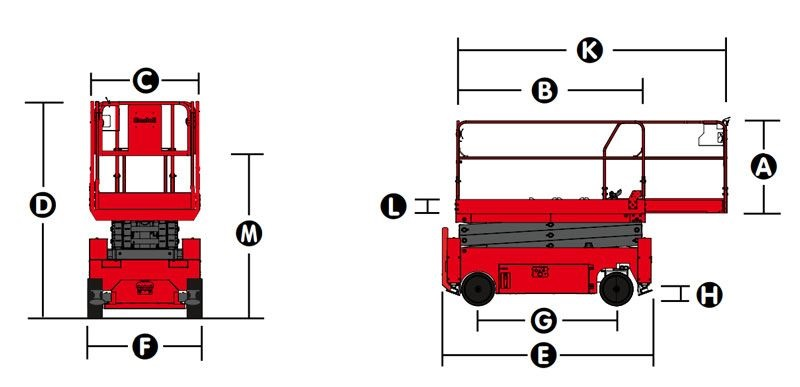

Dimension of the platform B*C*A

2.3×1.15×1.1 m

Platform skirting board height L

0.17 m

Overall length and width E*F

2.55×1.2 m

2.8*1.2 m

Height stowed D

2.25 m

2.4 m

2.53 m

2.65 m

2.82 m

Height-guardrails folded M

1.64 m

1.76 m

1.88 m

2.05 m

2.17 m

Wheelbase G

1.68 m

1.88 m

Ground clearance H

0.15 m

0.14 m

Turning radius-outside

2.4 m

2.64 m

Raising time/lowering time

32/30 s

45/30 s

55/37 s

75/50 s

86/50 s

Drive speed-raised

0.7 km/h

Weight

2270 kg

2880 kg

3110 kg

3295 kg

3575 kg

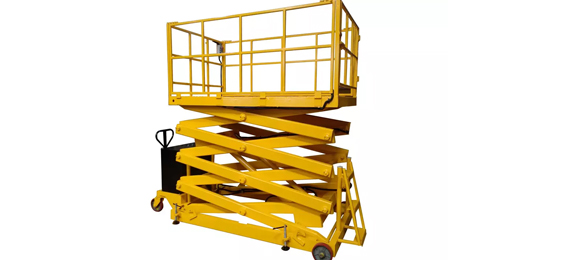

Characteristics

  • 1. Scissor Mechanism: The platform is raised and lowered by a crisscrossing (scissor-like) mechanism that extends or contracts to provide vertical movement.

    2. Electric Motor: Powered by an electric motor, which can be either battery-operated or connected to an external power source.

    3. Platform: A spacious and sturdy platform with guardrails for safety, often equipped with extendable sections to increase the working area.

    4. Controls: Intuitive control panel located on the platform and/or at the base, allowing for precise movement and positioning.

Advantages

  • 01Safety: Provides a secure and stable platform for workers, reducing the risk of falls and accidents.
  • 02Efficiency: Allows for quick and easy access to elevated work areas, improving productivity
  • 03Versatility: Can be used indoors and outdoors, suitable for a wide range of applications.
  • 04Compact Design: Many models are designed to fit through standard doorways and narrow aisles, making them easy to transport and store

Application

  • 01Construction and Maintenance: Used for tasks such as painting, plastering, electrical work, and general maintenance in buildings and construction sites.
  • 02Warehousing and Logistics: Ideal for accessing high shelves, performing inventory checks, and managing goods in storage facilities.
  • 03Manufacturing: Used for assembly, repair, and maintenance tasks in manufacturing plants.
  • 04Facility Management: Used in maintenance of large facilities like airports, stadiums, and shopping malls.
