Electromagnetic Chuck Lifter

Send Message Inquiry Now

Product Description

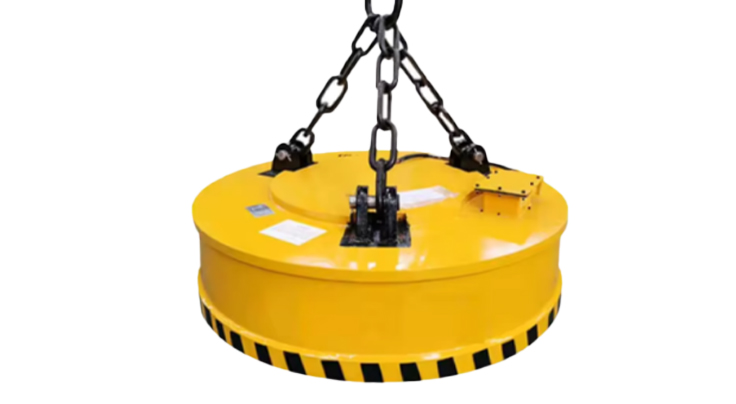

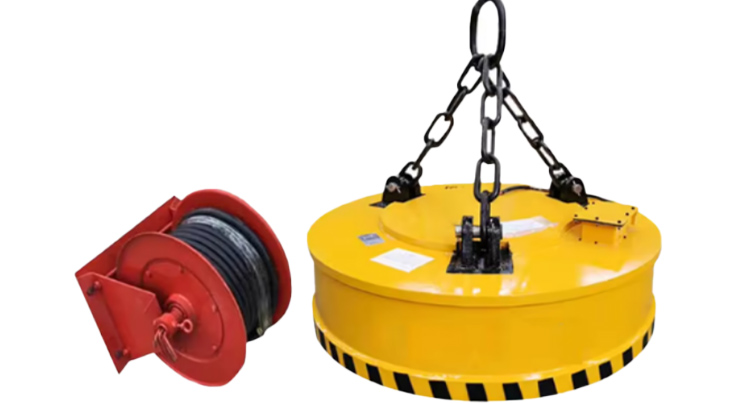

An electromagnetic chuck, also known as an electromagnetic lifter, is a device that uses magnetic force to hold or lift ferromagnetic materials. It is commonly used in various industrial applications, such as machining, manufacturing, and material handling, due to its efficiency and reliability.
Crane magnet adopt totally sealing structure with good property of moisture-proofing. Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption. The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life.

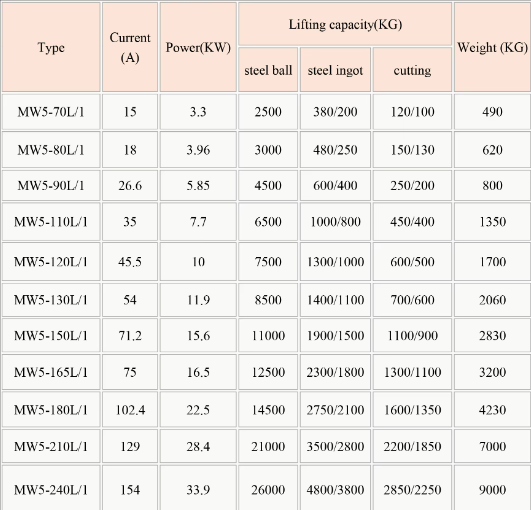

Technical Parameters

electromagnetic chuck

Characteristics

1. Electromagnetic Force: Utilizes a magnetic field generated by electric current to attract and hold ferromagnetic materials;

2. Control and Flexibility: The magnetic force can be easily controlled by adjusting the electric current, providing flexible operation;
3. Strong Holding Power: Capable of generating a strong magnetic field, ensuring a firm grip on heavy or large metal objects;

4. Safety Mechanisms: Often equipped with safety features such as battery backup or fail-safe mechanisms to maintain magnetic force in case of power failure.

Advantages

01 Attractive, small size, light weight, lifting capacity, easy and safe operation.
02 Running in a high auto matization and intellectualization.
03 Adopt totally sealing structure with good property of moisture-proofing.
04 Simple and convenient installation, operation and maintenance.
05 Majorized design by computer with reasonable structure, light dead-weight, strong attraction force.

Application

01 Machining and Manufacturing: Widely used in CNC machines, surface grinders, and milling machines to hold workpieces during machining operations.
02 Metal Fabrication: Facilitates the handling and positioning of metal components in fabrication shops and manufacturing plants.

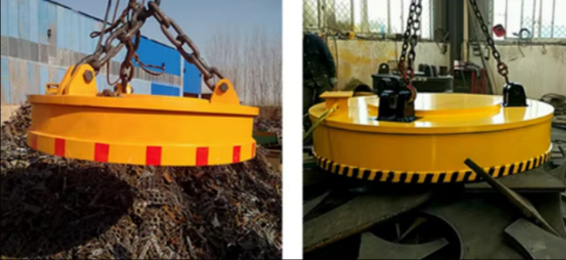

03 Steel Mills and Foundries: Employed to handle large steel plates, billets, and castings in heavy industries.
04 Scrap Yards and Recycling: Utilized to sort, lift, and move ferrous scrap metal in recycling facilities.

Send Message

Related Products

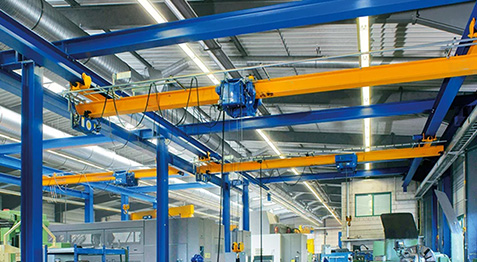

Underslung Single Girder Overhead Cranes
