Product Description

New type of electric hoist employs motor of hoisting mechanism and reducer imported from Germany. The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user. Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.

It has more and faster hoist speed and various pulley ratio which can be selected. The standard traveling mechanism of trolley is controlled by converter, with speed of 20m/min, which makes a little swing and accurate position if hoisting items while trolley traveling as well as lifts precision and valuable items reliably.

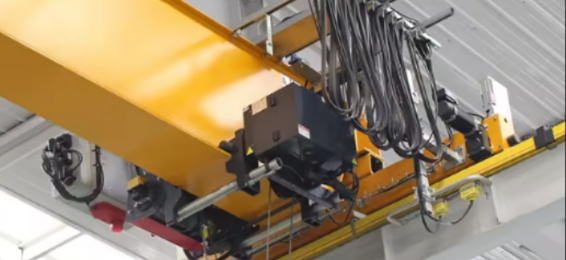

European standard bridge crane hoists, with light self weight, small structure and low energy consumption. It is equipped with a trolley and lifting mechanism on the bridge cranes, the hoist type trolley can move forward and backward, the hoists can lift up and down, to realize the material object handling in the three-dimensional space.

Technical Parameters

Item	New Types of Electric Hoist
Lifting Capacity(T)	1-20
Hoisting Height(m)	6/9/12/18
Hoisting Speed(m/min)	0.8/5.0 or 1.6/10 or 1.3/8 or 0.66/4 or 0.6/4
Travelling Speed(m/min)	5-20
Working Class	M7-M3

Characteristics

1. With aluminum alloy shell of reducer;

2. Steady running and low noise;
3. Lifetime lubricating;

4. Double-disk electromagnetic brake.

Advantages

01 Advanced design feature for wire rope hoist.
02 Three in-one gear motor Design.
03 Full frequency control.
04 Squirrel cage asynchronous motor Maximum speed 4800 rpm.
05 Heavy duty system, Load duration 60% ED
06 Protection class IP55

Application

01 Manufacturing and Assembly Plants: Material Handling: Used to transport raw materials, semi-finished products, and finished goods within the production facility.
02 Warehousing and Logistics:
Loading and Unloading: Facilitates the loading and unloading of goods from trucks, containers, and storage areas;
Inventory Management: Helps in the efficient organization and retrieval of items in warehouses, optimizing storage space.
03 Mining and Extraction:
Material Transport: Used to lift and transport extracted minerals, ores, and other raw materials.
Equipment Maintenance: Essential for the maintenance and repair of heavy mining machinery and equipment.
04 Construction Sites
Heavy Lifting: Used to lift and place construction materials such as steel beams, concrete blocks, and prefabricated sections.
On-site Assembly: Assists in the assembly of large structures, such as bridges, buildings, and towers.
