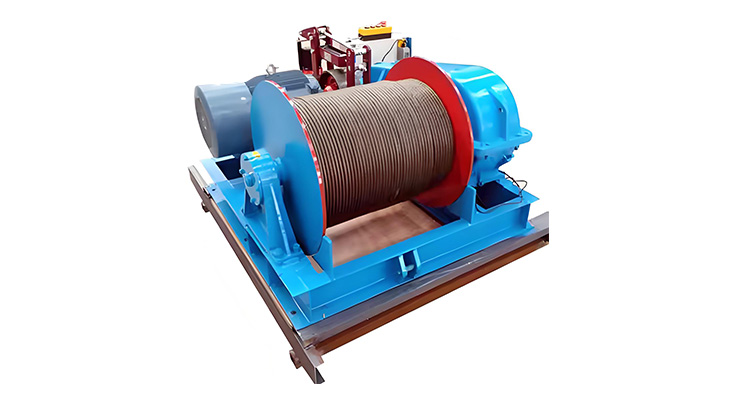

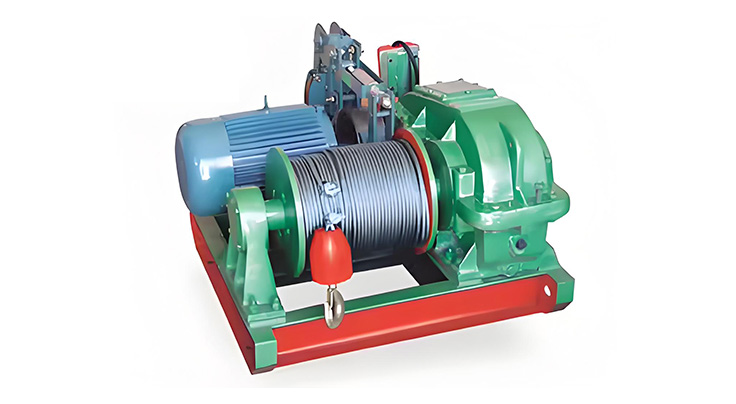

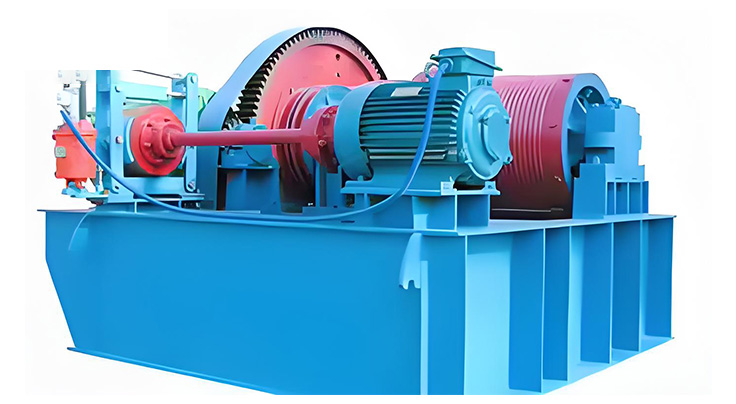

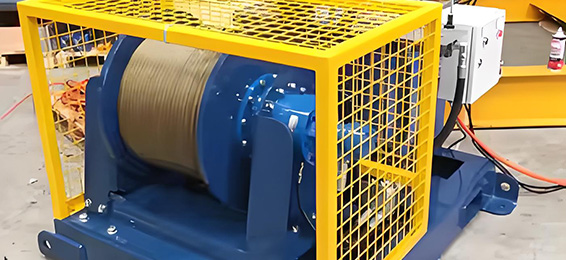

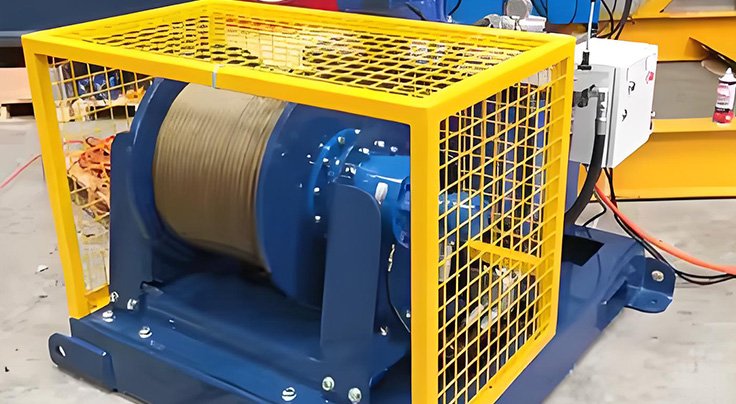

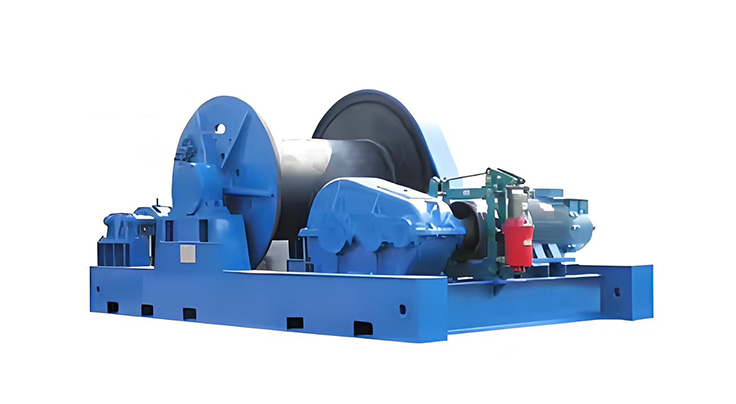

Fast Speed Electric Winch

Send Message Inquiry Now

Product Description

High speed electric winch is also called JK electric winch. It is another heavy-duty electric winch that is commonly used in various industrial applications. It is known for its high efficiency, high reliability and strong pulling force. Compared with the JM type electric winch, this electric winch is faster.

Technical Parameters

Model	Rated load(KN)	Rated speed(m/min)	Rope capacity(m)	Rope diameter(mm)	Motor power(KN)	Overall dimension(mm)	Overall Weight(Kg)
JK0.5	5	22	190	7.7	3	620701417	200
JK1	10	22	100	9.3	4	620701417	300
JK1.6	16	24	150	12.5	5.5	945996570	500
JK2	20	24	150	13	7.5	945996570	550
JK3.2	32	25	290	15.5	15	13251335840	1011
JK3.2B	32	30	250	15.5	22	19001738985	1500
JK5	50	30	300	21.5	30	19001620985	2050
JK5B	50	25	210	21.5	22	225025001300	2264
JK8	80	25	160	26	45	153319851045	3000
JK10	100	30	300	30	55	225025001300	5100

Characteristics

Reasonable structure and design hoist.

Easy to install and Maintenance.

High efficiency and stable performance.

Top quality with competitive and economic price.

Double Speed: Low Speed and Normal Speed.

With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

Advantages

01High Efficiency: Capable of handling heavy loads with ease, improving operational efficiency.
02Safety: Designed with safety features to protect operators and prevent accidents.
03Versatility: Suitable for a wide range of industrial applications.
04Durability: Built to last, even in demanding environments.
05Ease of Use: User-friendly controls and reliable performance simplify operation.

Application

01Construction: Used for lifting and positioning heavy building materials and equipment.
02Mining: Assists in moving heavy machinery and materials within mining operations.
03Shipyards: Utilized for shipbuilding and repair tasks, such as moving large components and sections of ships.
04Factories: Employed in various manufacturing processes where heavy loads need to be moved or lifted.
05Infrastructure Projects: Supports tasks such as bridge construction, tunnel boring, and other large-scale infrastructure projects.
