Heavy Capacity JM Wire Rope Electric Winch

Send Message Inquiry Now
Heavy Capacity JM Wire Rope Electric Winch
Heavy Capacity JM Wire Rope Electric Winch
Heavy Capacity JM Wire Rope Electric Winch
Heavy Capacity JM Wire Rope Electric Winch

Product Description

Electric winches are mainly used for the installation of various large and medium-sized concrete, steel structures and mechanical equipment, and can also be used as a component of machinery such as lifting, road construction, and mine lifting. Mainly used for civil construction, mining area hoisting, small equipment installation, material upgrading and transformation, and plant construction.

Technical Parameters

Basic Date Type Rated Pull(KN） Speed(m/min) Rope Capacity(m) Rope Diameter(mm) Motor Power(kw) Overall Size(mm) Weight(kg)
JM1 10 15 100 9.3 3 650*700*417 270
JM2 20 16 150 13 7.5 945*96*570 550
JM3.2 30 9.5 150 15.5 7.5 1080*1015*610 1100
JM5 50 10 270 21.5 11 1235*1230*805 1560
JM6 60 9.5 270 24 15 1235*1500*805 1800
JM8 80 8 250 26 15 2090*1475*956 2900
JM10 100 8 250 30 22 2090*1475*956 3000
JM16 160 10 500 37 37 3750*2400*1850 8800
JM32 320 9 700 56 75 4500*2850*2100 14800

Characteristics

  • Reasonable structure and design hoist.

    Easy to install and Maintenance.

    High efficiency and stable performance.

    Top quality with competitive and economic price.

    Double Speed: Low Speed and Normal Speed.

    With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

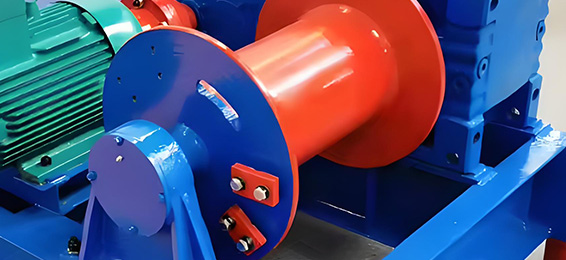

    Custom-200m-wire-rope-winch-16-ton-20-ton-hydrauli-7

Advantages

  • 01 Use tapered rotor of three-phase asynchronous braking motors
  • 02 Stable starting,safe braking, can be used with reducer
  • 03 B grade or F grade of insulation,closed structure,motor protection grade is lP44 orIP54.
  • 04Brand: Nanjing special motor

Application

  • 01Construction: Used for lifting and positioning heavy building materials and equipment.
  • 02Mining: Assists in moving heavy machinery and materials within mining operations.
  • 03Shipyards: Utilized for shipbuilding and repair tasks, such as moving large components and sections of ships.
  • 04Factories: Employed in various manufacturing processes where heavy loads need to be moved or lifted.
  • 05Infrastructure Projects: Supports tasks such as bridge construction, tunnel boring, and other large-scale infrastructure projects.
