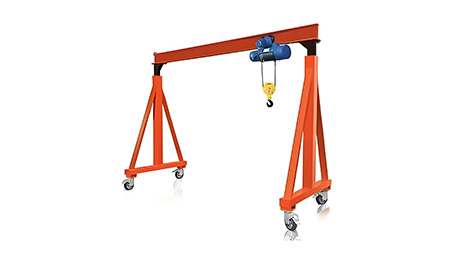

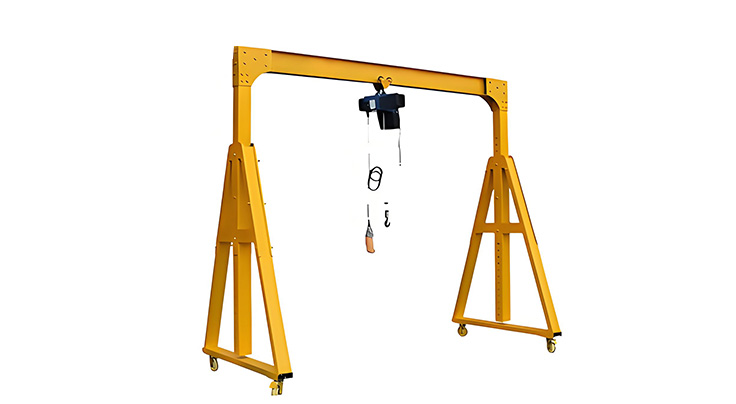

Portable Gantry Crane

Send Message Inquiry Now

Product Description

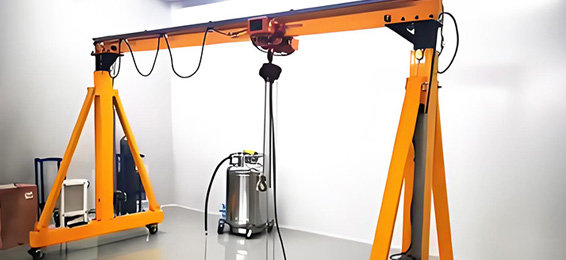

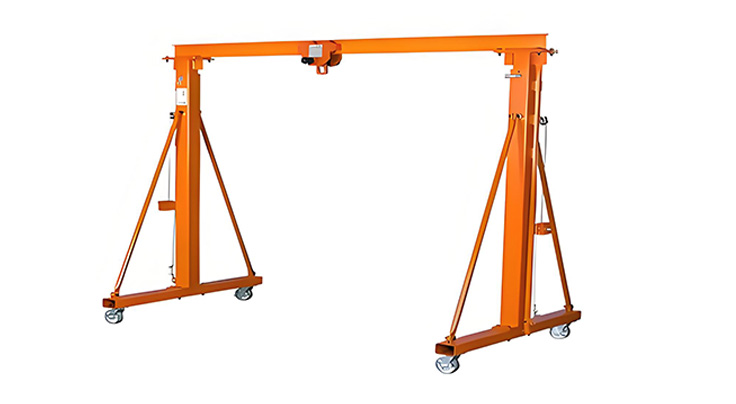

Portable gantry cranes have two structural forms, one is height adjustable type, the other is fixed height type, which is particularly suitable for equipment installation and transportation in yards and workshops. Portable mobile gantry cranes are usually used in assembly workshops, processing workshops, assembly molds, research laboratories, maintenance workshops, small freight stations, warehouses, repair shops, etc., and are suitable for environments with limited clearance in the work area.
The poartable gantry cranes are easy to move, quick to disassemble and assemble, and occupy a small area. The structural design is reasonable, can withstand a weight of 500 to 10,000 kilograms, and the span can reach 10 meters.
The belt brake of the small gantry crane can be moved on the ground on the bearing universal wheel. With accessories such as electric hoists or manual hoists, chain blocks or monorail cars, the mechanization of lifting is realized, which can reduce manpower and production costs and improve work efficiency.

Technical Parameters

Item	Parameters
Capacity	0.5 ton	1 ton	2 ton	3 ton	5 ton	10 ton
Span	2m~12m (as your require)
Height	1-10m (as your require)
Wheel	4
Lifting Mechanism	Manual/Electric wire rope or Chain hoist
Power	380V 50HZ 3P or customized
Note	customized deisgn is acceptable

Characteristics

Main Beam (Girder): This horizontal beam spans across the width of the crane and supports the load directly. It is typically the main structure of the crane that holds the hoist.

Legs (A-Frame or Gantry Legs): The legs are vertical supports that connect the main beam to the ground or casters. These are often A-frame in design to add stability.

Hoist and Trolley: The hoist is the lifting device attached to the crane and moves horizontally along the main beam. It is operated manually, electrically, or pneumatically. The trolley is the mechanism on which the hoist travels along the girder.

Advantages

1 Flexibility and Versatility: The mobility and adjustability of portable gantry cranes make them suitable for a wide range of tasks and environments.
2 Cost-Effective: Portable gantry cranes are generally more affordable than fixed gantry cranes or overhead cranes, making them a cost-effective solution for many lifting needs.
3 Ease of Use: Their simple design and ease of assembly make them user-friendly and quick to deploy, reducing setup time and increasing productivity.
4 Space-Saving: These cranes can be moved and stored when not in use, freeing up valuable floor space in the workspace.

Application

1 Workshops and Small Factories: Used for lifting and moving heavy machinery, tools, and parts within confined spaces.
2 Maintenance and Repair: Ideal for tasks that require moving heavy components during maintenance and repair operations, especially in environments where a permanent crane is not available.
3 Construction Sites: Portable gantry cranes are useful for lifting and positioning materials and equipment on construction sites, particularly for smaller projects.
4 Warehouses: Employed for handling goods, loading and unloading trucks, and organizing inventory.
5 Outdoor Applications: Suitable for outdoor tasks where lifting equipment is needed but permanent installations are impractical, such as setting up events or outdoor repair jobs.
