Precast Beam Carrier
Precast Beam Carrier
Precast Beam Carrier
Precast Beam Carrier
Precast Beam Carrier

Product Description

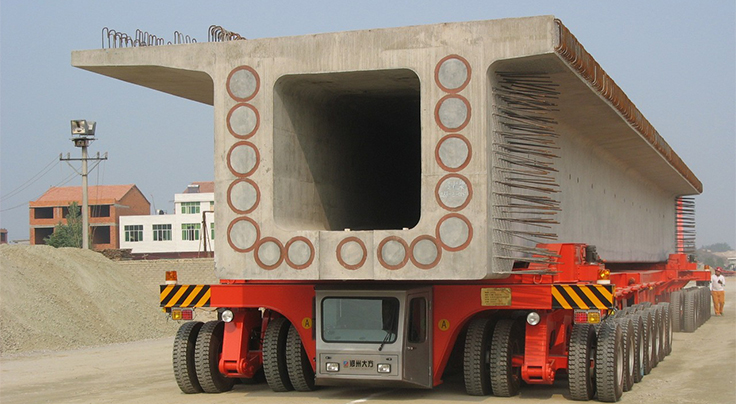

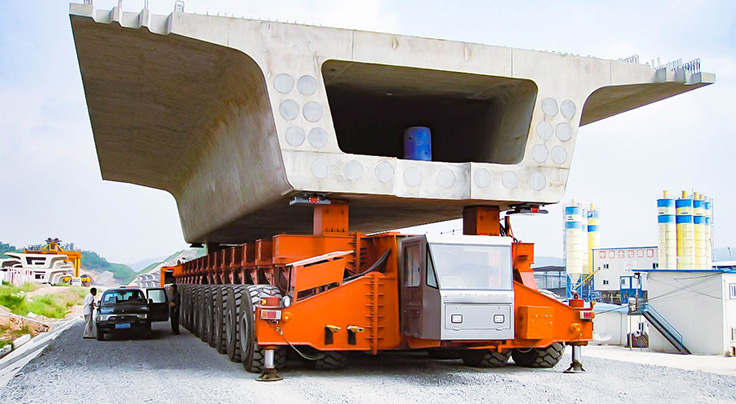

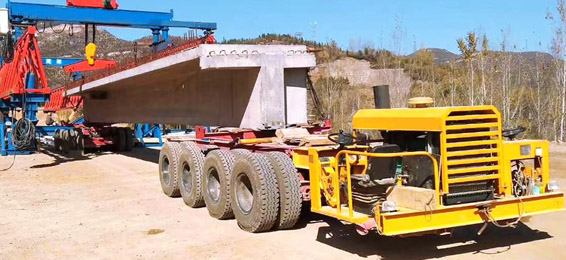

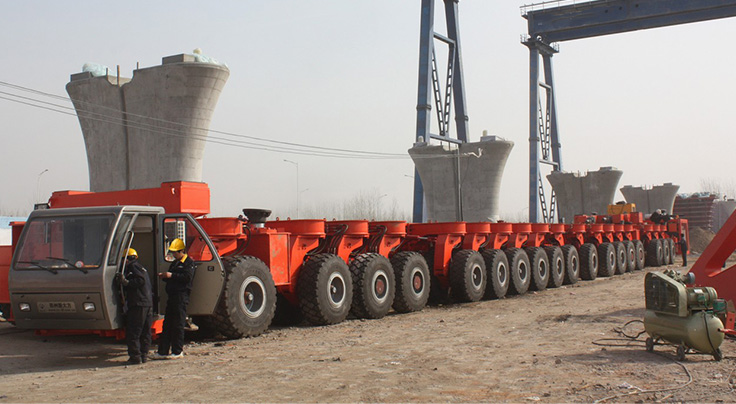

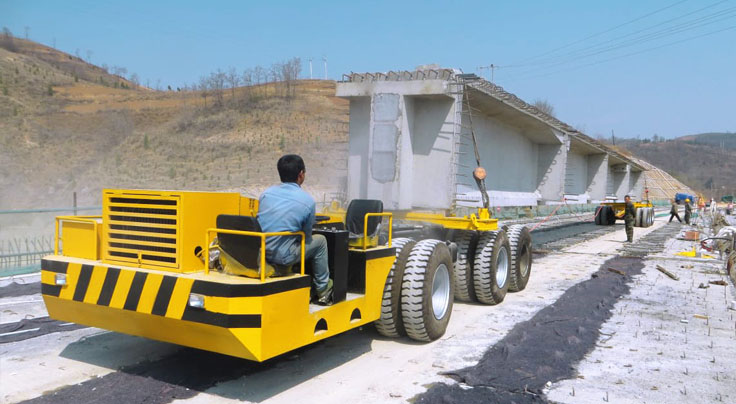

The Precast Beam Carrier is the most ideal special tool for precast beam transport in the bridge transport process. Precast Beam Carrier, also known as a Beam Transporter or Beam Carrier, is a vehicle designed to transport precast concrete beams and girders from the manufacturing site to the construction site. And the whole crane is a transport machine composed of two independent operating structures (main and auxiliary crane). The professionally designed center distance is commonly used for the transportation of T-girder, box girder and 45° diagonal beam, which simplifies the transportation process and improves the overall engineering efficiency.

Technical Parameters

Precast Beam Carrier

Product Model

SH-GT-150

Capacity

150T

Main trolley dimensions

7.2mx3mx1.5m

Aux trolley dimensions

4.5m×2.88m×1.5m

Climbing ability (transverse/longitudinal)

3%/5%

Turning radius

(girder length+10m)/2

Traveling speed(without load)

40km/h

Traveling speed(with bad)

10km/h

Driving axle

2

Steering axle

2

Diesel engine power

150kW

Characteristics

  • 1.Compact model, not limited by the narrow space of the road and culvert;

    2.Good stability and anti-overturning property;

    3.3.Turbocharged engine;

    Precast Beam Carrier

  • 4.Super climbing strength;

    5.Heavy-duty design, equipped with air-brake system, high safety;

    6.Simple operation, good parts commonality, low maintenance costs

Advantages

  • 01 Increased Speed of Construction: Precast beam carriers can quickly transport and position large precast beams, significantly reducing the time required for construction projects.

  • 02 Accurate Placement: Equipped with precise positioning systems, precast beam carriers can place beams with a high degree of accuracy, ensuring that the structural components are correctly aligned.

  • 03 Reduced Operational Costs: By speeding up construction timelines and reducing labor requirements, precast beam carriers help lower overall project costs.

  • 04 Efficient Use of Space: By transporting and placing beams directly at the construction site, precast beam carriers help optimize the use of available space, reducing congestion and improving site organization.

Application

  • Precast beam carriers play a crucial role in the modern construction industry by facilitating the safe and efficient transportation and placement of precast concrete beams. Their specialized design and functionality ensure that large-scale construction projects can proceed smoothly and effectively.
