Single Girder Rubber Tyre Gantry Crane
Single Girder Rubber Tyre Gantry Crane
Single Girder Rubber Tyre Gantry Crane
Single Girder Rubber Tyre Gantry Crane

Product Description

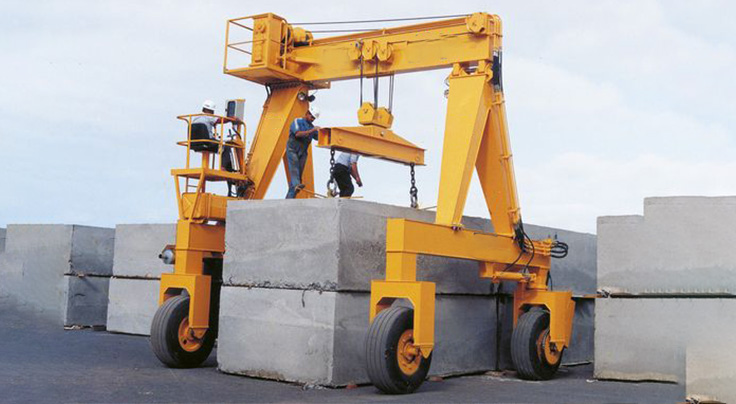

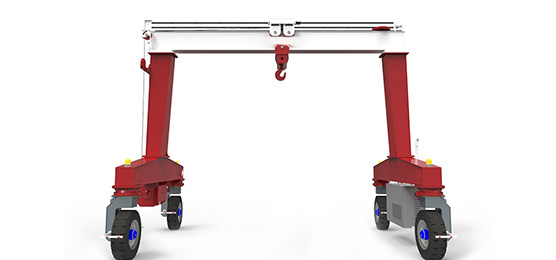

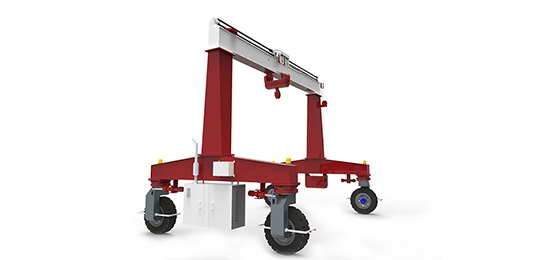

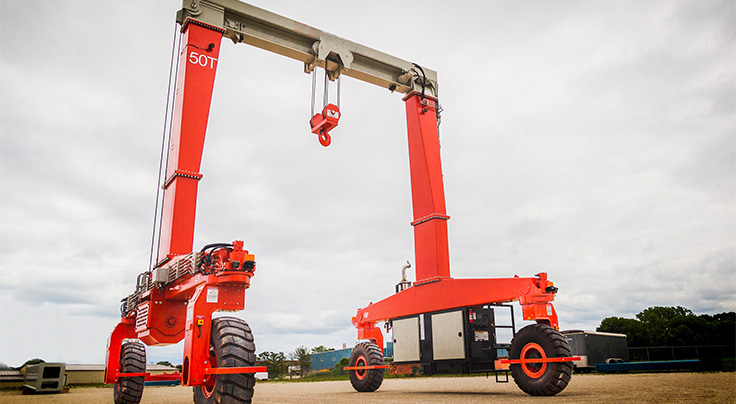

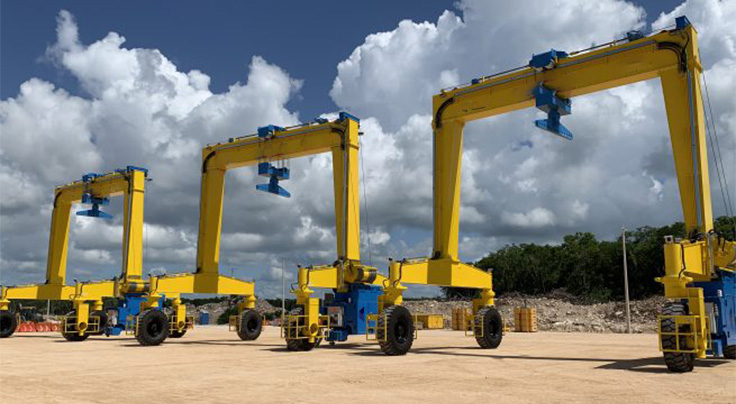

One kind of mobile gantry crane that runs on rubber tires rather than rails is the single girder rubber tire gantry crane, also known as single girder straddle carrier. Compared to models with double girders, it is more affordable and lighter due to its single girder main horizontal framework. These cranes offer flexibility and freedom of movement and are frequently employed in a variety of industrial applications for lifting and transporting heavy items within a specific region.

Technical Parameters

Parameter

Specification

Lifting Capacity

5 to 100 tons

Span

18 to 35 meters

Lifting Height

3 to 12 meters

Travel Speed

20 to 40 m/min

Lifting Speed

3 to 8 m/min

Power Source

Diesel, Electric, or Hybrid

Control Method

Pendant control, Remote control, or Cabin control

Tire Type

Solid rubber or pneumatic

Working Class

A3, A4

Operating Environment

Indoor or Outdoor

Characteristics

  • 1.Girder: The main horizontal beam that supports the hoist and travels across the span.

    2.Hoist: The lifting mechanism attached to the girder, responsible for raising and lowering loads.

    3.End Trucks: The assemblies at both ends of the girder, containing wheels and providing movement.

    4.Rubber Tires: Wheels that allow the crane to move freely across the ground.

  • 5.Control System: Includes the control panel and any remote control features for operating the crane.

    6.Legs: Vertical supports that connect the girder to the end trucks and provide stability.

    7.Motor: Powers the movement of the crane and the hoist.

Advantages

  • 01 Mobility: Can move freely around the workspace, unlike rail-mounted cranes.

  • 02 Cost-effective: Generally cheaper to install and maintain compared to double girder or rail-mounted cranes.

  • 03 Flexibility: Suitable for various industrial environments due to its mobility and ease of operation.

  • 04 Ease of Installation: Requires less complex infrastructure for installation.

  • 05 Versatility: Can be used both indoors and outdoors.

Application

  • 01 Factories: Moving heavy machinery or components.

  • 02 Construction Sites: Lifting and transporting construction materials.

  • 03 Workshops: Handling large workpieces or equipment.

  • 04 Warehouses: Stacking and organizing heavy goods.

  • 05 Shipyards: Assisting in the assembly and repair of ships.
