Product Description

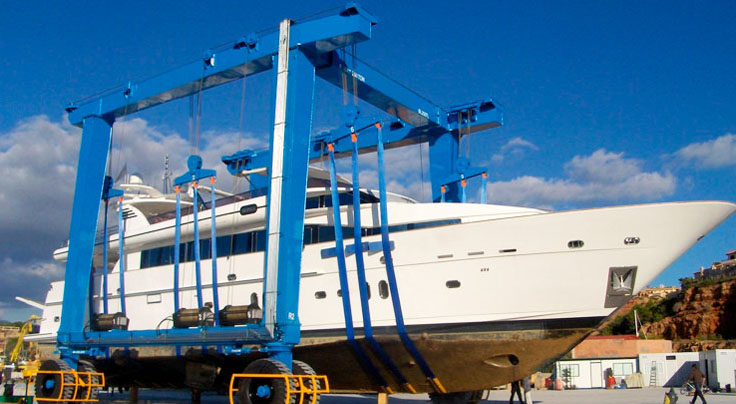

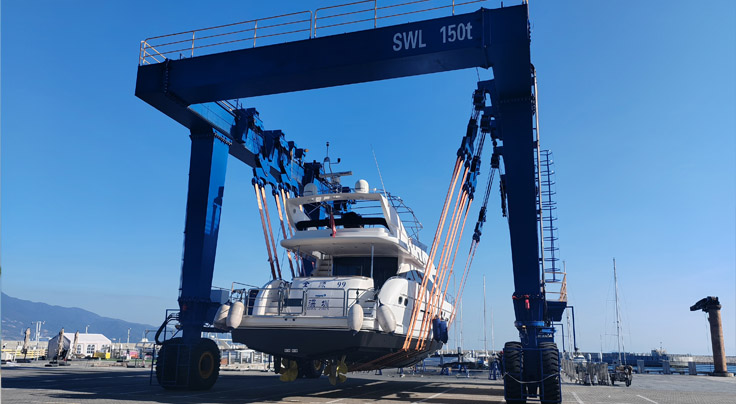

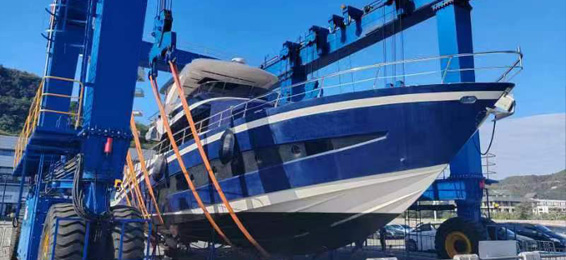

Boat crane is also known as travel lift, yacht crane and boat hoist, which includes the following items: main structure, traveling wheel block, lifting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the "U" type ,it can transfer the boat which the height surpass its height.

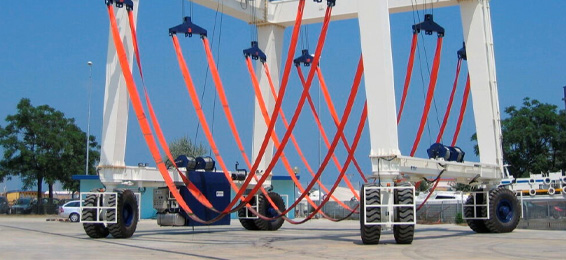

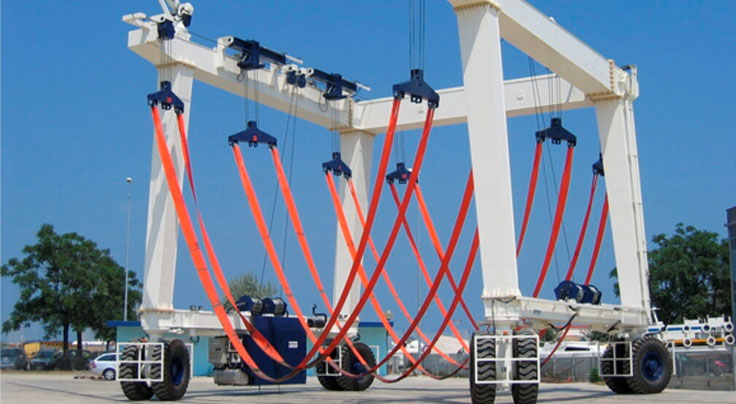

According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-500T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface. The crane also can put the boat in sequence quickly with small gap between each two boats. Electrical system uses PLC frequency adjustment which can easily control every mechanism.

Technical Parameters

Rated capacity		100	150	200	300
（kg/cm²） Grounding specific pressure		11.5	11	11.5	6.5
（m/min）Grade ability		2%	4%	4%	4%
（m/min）	Full load	0~2	0~1	0~2	0~1
Lifting speed	Non-load	0~5	0~4	0~3	0~3
（m/min）	Full load	0~20	0~20	0~20	0~20
Running speed	Non-load	0~35	0~35	0~35	0~35
Working Ambient temperature		-20℃+50℃	-20℃+50℃	-20℃+50℃	-20℃+50℃

Characteristics

Multi-lifting point arrangement, safe and reliable lifting, each lifting point spacing can be adjusted to meet the needs of different hulls;

Support a variety of steering functions, in situ rotation, Ackerman steering, flexibility;

Adopt multiple lifting points synchronous lifting, tire anti-slip technology;

Synchronous detection and feedback control;
It can realize the stress release of complex road gantry frame;

The main structure is a "U" structure, which can carry boats that are higher than the height of the transport ship itself;

Lifting adopts U-shaped design, one machine can be applied to a variety of ship types;

Multi-layer protection, suitable for high corrosion coastal environment;

Advantages

1 Efficient Load Handling: Travel lifts are specifically designed to handle large, heavy loads like boats and yachts, ensuring they’re transported safely and efficiently.
2 Mobility: Travel lifts are mobile, allowing them to move loads from one location to another within the facility.
3 Customization Options: Many travel lifts can be tailored to specific lifting requirements, with customizable load capacities, lifting heights, and wheelbases.
4 Multiple lifting point arrangement: The lifting is safe and reliable, and the distance between each lifting point can be adjusted to meet the needs of different hulls.
5 Versatility: The lifting adopts U-shaped design, one machine can be used for various ship types.
6 Anti-corrosion: Multi-layer protection, suitable for high corrosion environment at the seaside

Application

1 Marinas and Shipyards: Primarily used to lift boats in and out of the water, these lifts are essential for boat maintenance, inspection, and storage.
2 Boat Building and Repair: Travel lifts assist in moving boats from production lines to test areas, dry docks, or repair bays.
3 Transport and Logistics: Some facilities use travel lifts to move oversized or irregularly shaped loads, like industrial machinery or heavy equipment.

Send Message

Related Products

Straddle Carrier

Straddle Carrier uses heavy-duty rubber tires to walk, hydraulically controls steering

Rubber Tyred Container Gantry Crane

Rail type container gantry crane (RMG) is designed and manufactured in accordance with national and industry standards such as GB/T3811 "Crane Design Specification" and GB/T14406 "General Gantry Cranes".

Double Girder Gantry Crane

Precasting(Engineering) gantry crane is designed and manufactured in accordance with national and industry standards such as GB/T3811 "Crane Design Specification" and GB/T14406 "General Gantry Crane".

Rail Mounted Container Gantry Crane

Marine Deck Crane

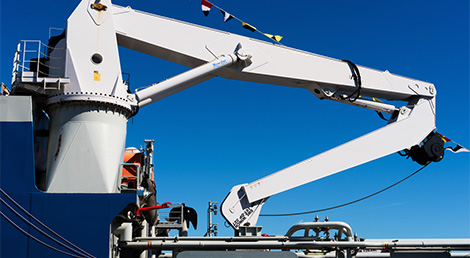

Marine deck crane is a type of crane specifically designed for use on ships, offshore platforms, and docks.
