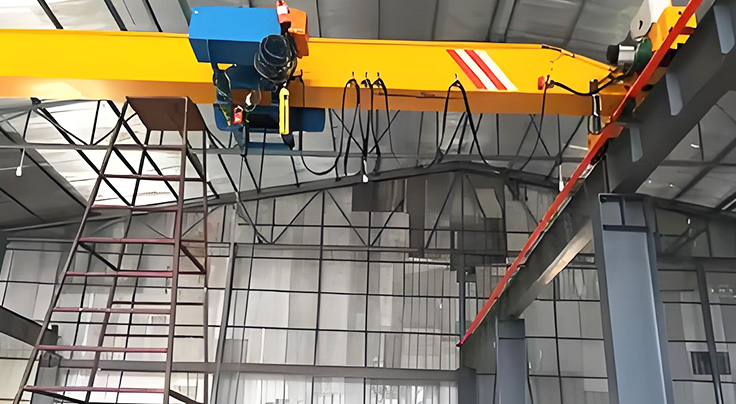

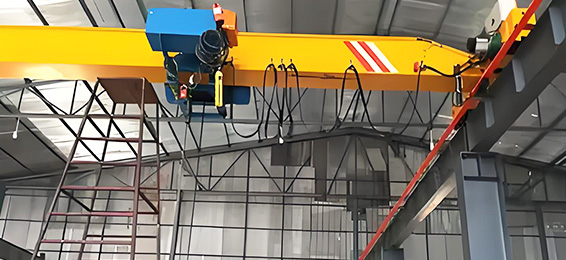

Underslung Single Girder Overhead Cranes

Send Message Inquiry Now

Product Description

Underslung single girder overhead crane adopts a suspension design, which is mainly composed of a suspension beam, an electric motor, a lifting mechanism, etc. Sometimes, it also called as under running crane and suspension or suspened overhead crane. The suspension design allows the crane to be suspended on the ceiling without occupying ground space, and is suitable for places with limited height. Underslung single girder overhead crane is a widely used lifting equipment with the advantages of simple structure, flexible installation, and high working efficiency. Reasonable use and correct maintenance can ensure the normal operation of the crane, improve production efficiency, and promote the development of industrial production.

Technical Parameters

Capacity	ton	0.5	1	2	3	5	10
Travelling Speed	m/min	20/30
Lifting Height	m	6/9/12/18
Lifting Speed(hoist)	m/min	8 8/0.8					7 7/0.7
Span	m	3-16
Working Class	A3-A5
Power supply	220V/380V 50Hz 3-phase or customized
Control method	Pendant control, Remote control, Cabin control

Characteristics

Underslung Design: The crane runs on the underside of the runway, making it suitable for facilities with low headroom.

Single Girder Construction: Comprises a single girder, reducing the overall weight and simplifying the structure

Work duty: A3/A4,
Flexible Installation: Can be installed in existing structures without major modifications

Smooth Operation: Equipped with efficient motors and control systems for precise movement

Safety Features: Includes overload protection, limit switches, and emergency stop functions

Advantages

01Lightweight: Generally lighter than double girder cranes, which simplifies installation and reduces the load on the building structure.
02 Flexible Installation: Can be installed in buildings with complex layouts, including those with varying ceiling heights and obstructions.
03 Single Girder Construction: Utilizes a single beam, making it suitable for lighter to medium-duty applications.
04 Flexibility: Adaptable to various building layouts and workflows, providing versatile material handling solutions.

Application

01Small to Medium-Sized Workshops: Provides an efficient solution for handling workpieces and tools in confined spaces.
02 Electronics Manufacturing: Perfect for handling delicate and lightweight components safely and efficiently.
03 Manufacturing Facilities: For transporting raw materials, components, and finished products across the production floor.
04 Warehouses: Ideal for moving goods within storage areas, facilitating efficient inventory management, and loading/unloading operations.

Send Message

Related Products

Single Girder Overhead Crane

Typically used for either manufacturing or maintenance applications, suitable for a wide range of industrial applications where medium to heavy lifting is required within limited space or budget.

FEM Standard Single Girder Overhead Crane

FEM standard overhead crane are widely used in manufacturing, assembly lines, warehouses, and other settings.

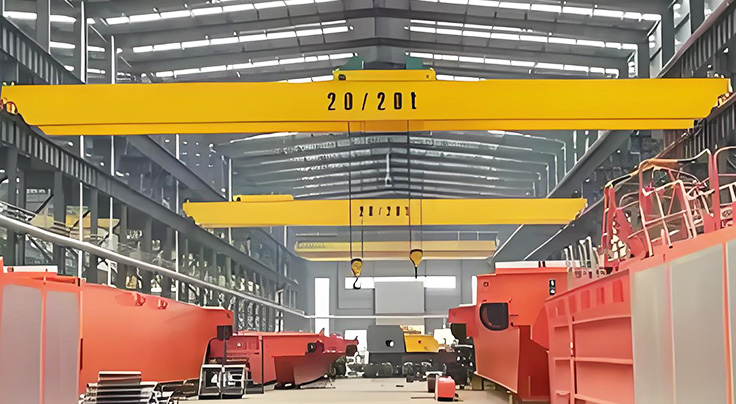

Double Girder Overhead Crane with Hooks

Double girder overhead crane with hooks iis widely used in various industrial settings for lifting and transporting heavy loads.

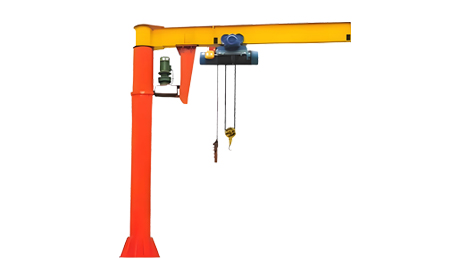

Floor Mounted Jib Crane
